Brand Name : | QualitY or QY |
Model Number : | Sc apc adapter with metal foot |
Certification : | ISO90012015, SGS |
Price : | Negotiation |
Payment Terms : | L/C, T/T, Western Union,Paypal |
Supply Ability : | 250000pcs per week sc apc adapter with metal foot used for PCB circuit board IL<=0.2dB |
Delivery Time : | 7 working days |
MOQ : | 100PCS |
Description

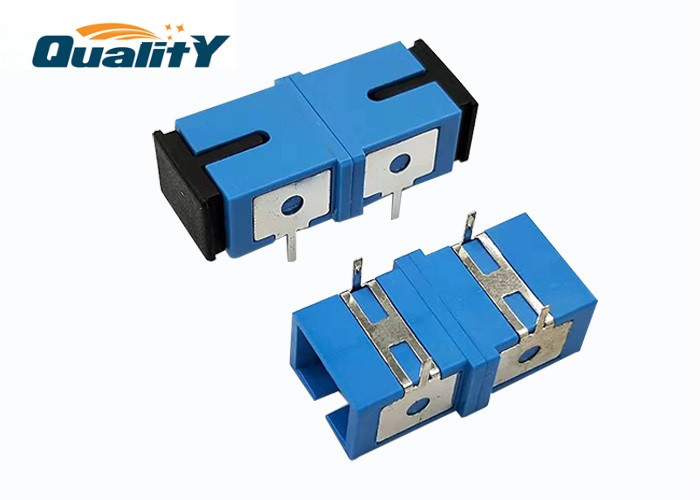

SC-APC fiber adapter is a mechanical device designed to align
fiber-optic connectors. It contains the interconnect sleeve, that
holds the two ferrules together.
SC-APC fiber optic adapters are flange type in plastic housing;
Single mode adapters are with Ceramic sleeve while multimode fiber
adapters are with bronze sleeve.
Features of Adapter SC APC Simplex
-Good repeatability and interchangeability
-Good temperature performance and durability
-High-quality ceramic ferrules Low insertion loss
-High reflection loss size precision
Applications of Adapter SC APC Simplex
-Fiber Optic Telecommunications
-FTTH(Fiber To The Home)
-Data Processing Networkks
-Telecom Equipment
-Local Area Networks
-CATV&CCTV
Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC- ST, FC-SC, FC-LC, FC-MU | |||
SM | MM | ||||
PC | UPC | APC | PC | ||
Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
Exchangeability | dB | ≤0.2 | |||
Repeatability | dB | ≤0.2 | |||
Durability | Time | >1000 | |||
Operating Temperature | °C | -40~75 | |||
Storage Temperature | °C | -45~85 |
![]() |
