Brand Name : | QualitY or QY |
Model Number : | QADSCW-APC |
Certification : | ISO90012015, SGS |
Price : | Negotiation |
Payment Terms : | L/C, T/T, Western Union,Paypal |
Supply Ability : | 5000pcs per day |
Delivery Time : | 7 working days |
MOQ : | 100 PCS |

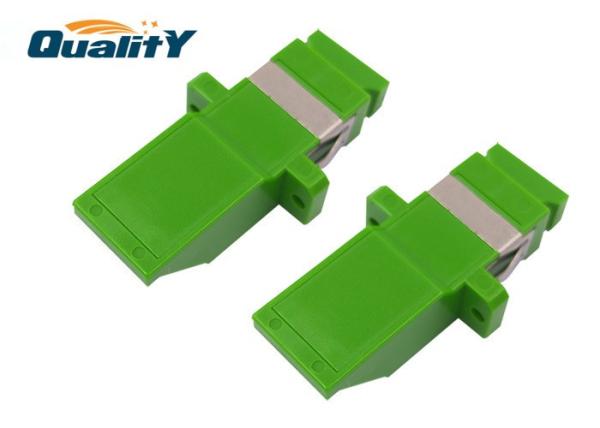

QualitY QADSCW-APC simplex duplex SC APC coupler fiber optic adapters
Description
Fiber optic adapters (also known as bulkheads) are used to join two
fiber optic patch cables together.
They are available for use with either singlemode or multimode
patch cables.
Features
LC/SC/FC/ST Type Optional
UPC or APC Optional
SM or MM Optional
With/Without flange Optional
Simplex, Duplex or Quad Optional
Zirconia Sleeve, Compact design
Specification
Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC- ST, FC-SC, FC-LC, FC-MU | |||
SM | MM | ||||
PC | UPC | APC | PC | ||
Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
Exchangeability | dB | ≤0.2 | |||
Repeatability | dB | ≤0.2 | |||
Durability | Time | >1000 | |||
Operating Temperature | °C | -40~75 | |||
Storage Temperature | °C | -45~85 |
![]() |
