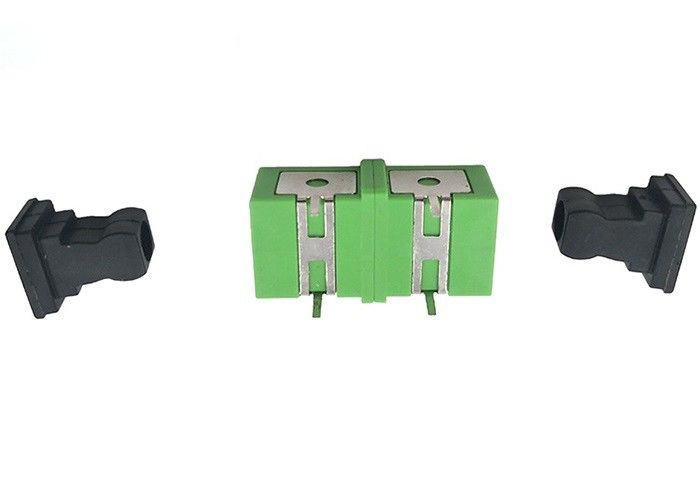

    QADSC-APC-005 Sc apc adapter with metal foot Fiber Optic Connector Adapters For PCB Board

    Ask Lasest Price
    Brand Name : Quality (QY)
    Model Number : QADSC-APC-005
    Certification : ISO90012015
    Price : negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 250000pcs per week sc apc adapter with metal foot used for PCB circuit board IL<=0.2dB
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    QADSC-APC-005 Sc apc adapter with metal foot Fiber Optic Connector Adapters For PCB Board

    QADSC-APC-005 Sc apc adapter with metal foot Fiber Optic Connector Adapters For PCB Board/ftth


    Description


    Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together.
    They are available for use with either singlemode or multimode patch cables.

    Fiber Optic Adaptor (also called coupler, or flange coupler) is the device to couple two connectors together. QY’s adaptor adopts high precision alignment sleeve to keep high reliability and better performance. The color of housing is available in different colors or specified by customer, and with options for flange or flangeless body.

    QADSC-APC-005 Sc apc adapter with metal foot Fiber Optic Connector Adapters For PCB Board
    Feature

    1, LC/SC/FC/ST Type Optional
    2, UPC or APC Optional
    2, SM or MM Optional
    3, With/Without flange Optional
    4, Simplex , Duplex or Quad Optional
    5, Zirconia Sleeve ,Compact design
    6, Low insertional loss, High return loss
    7, Comply with IEC, Telcordia GR 326 and JIS standard


    Application


    CATV
    Telecommunication networks
    Test equipment
    Local Area Networks(LANs)

    Data processing networks


    Specification


    Item NameUnitSPECIFICATIONS
    Grade S (Standard)Grade P (Premium)
    △IL(Insertion Loss)dB≤ 0.2≤ 0.1
    InterchangeabilitydB≤ 0.2
    RepeatabilitydB≤ 0.1
    Durabilitytimes1,000
    Operating Temp.°C-25 ~ +70
    Fiber CountSimplex

    QADSC-APC-005 Sc apc adapter with metal foot Fiber Optic Connector Adapters For PCB BoardQADSC-APC-005 Sc apc adapter with metal foot Fiber Optic Connector Adapters For PCB BoardQADSC-APC-005 Sc apc adapter with metal foot Fiber Optic Connector Adapters For PCB Board


    Company Profile


    Founded in 2010, Dongguan Qingying Industrial Co., Ltd (QY) is a sophisticated fiber company located in two cities, Dongguan and Chongqing, in China. With more than 10,000m2 plant area, QY is now a company with integrated capability of R&D, production, trading and international sales. QY is an ISO9001:2015 certified company with hundreds of customers in Europe, America, Southeast Asia and Australia. Our main products are fiber optic field installable connector (fast connector), patch cord, armored patch cord, pigtail, PLC splitter, attenuator, and many other FTTH products. With 10-year experience in fiber optic industry, QY believes learning, cooperating, and sharing with customers is the best way to grow with customers. In the coming decade, QY will aggressively develop new products per customers’ demand, and improve quality of existing products for customers. All QY’s employees are looking forward to serving and co-working with customers for fiber business in the future.
