Technical specifications:
| Pigtail Connector | PC (SM) | UPC (SM) | APC (SM) | MM |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Insertion Loss (dB) | ≤0.2 (max≤0.3) |
| Repeatability (dB) | ≤0.1 |
| Durability(1/Matings) | ≥500 |
| Operation Temperature (°C) | -25~+70 |
| Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 |
| Fiber | 9/125um, 50/125um,62.5/125um,ect |
| diameter | 0.9mm 2.0mm, 3.0mm etc |
| Cable material | PVC, LSZH |
| Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc |

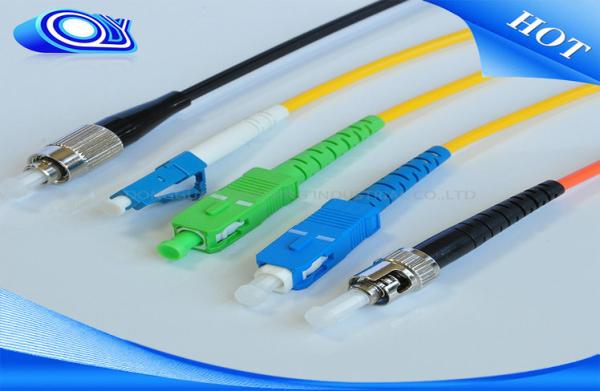

The fiber optic patch cord mainly used on patch panel or for the
connection between outlets and terminal equipment.It also widely
used for high bit rate data transmission,telecommunications,tesing
instruments,active device terminations,LAN/WAN and FTTX.
Under normal circumstances, the short wave optical module uses
multimode fiber (orange fiber), we use
a single mode fiber (yellow fiber) to ensure the accuracy of data
transmission.
If the fiber optic connector is dirty, you can use a cotton swab
dipped in alcohol cleaning, otherwise it will affect the quality of
communications.
Optical fiber in use not excessive bending and winding, this will
increase the light attenuation in the transmission process. Fiber
jumper after use must use to protect the optical fiber attachment,
dust and oil will damage the fiber coupling.
Features:
---Good durability
---Good exchangeability
---High temperature stability
---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Applications:
Gigabit Ethernet; Active device termination; Telecommunication
networks; Video;
Multimedia; Premise installations; Local area networks; FTTH FTTX
applications; CATV.
