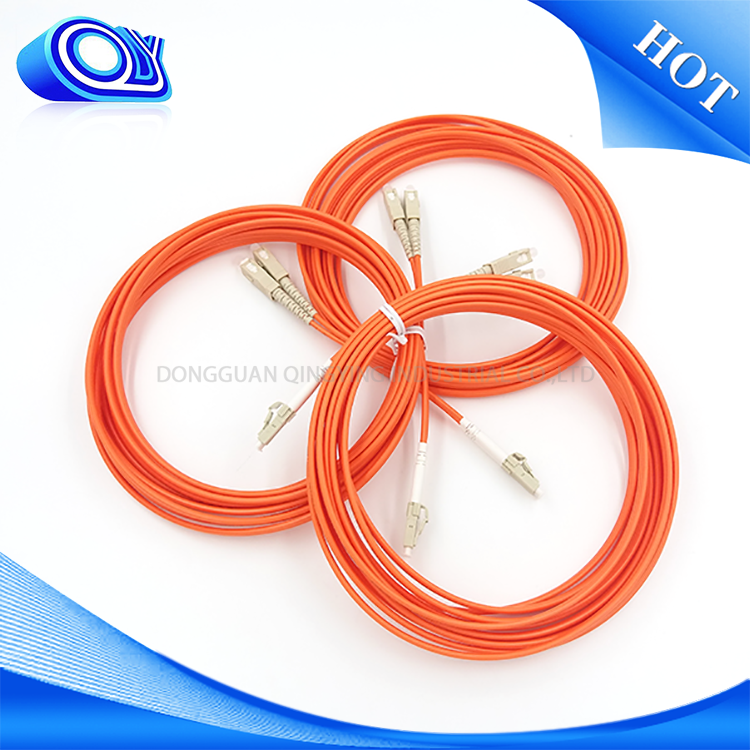

Duplex Fiber Optic Patch Cord SC MM single/double mode optical patch cable

    Buy cheap Duplex Fiber Optic Patch Cord SC MM single/double mode optical patch cable from wholesalers

    Buy cheap Duplex Fiber Optic Patch Cord SC MM single/double mode optical patch cable from wholesalers
    • Buy cheap Duplex Fiber Optic Patch Cord SC MM single/double mode optical patch cable from wholesalers

    Duplex Fiber Optic Patch Cord SC MM single/double mode optical patch cable

    Ask Lasest Price
    Brand Name : Qingying
    Model Number : Manufacture MM duplex amp om3 fiber optic patch cord
    Certification : IEC 60794-2-10/11
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 50000pcs per week
    • Product Details
    • Company Profile

    Duplex Fiber Optic Patch Cord SC MM single/double mode optical patch cable

    Duplex Fiber Optic Patch Cord SC MM single/double mode optical patch cable

    Product Description

    The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.


    Rugged fiber optic patch cord and 10 Gig fiber optic patch cord is also available with RoHS compliant. Our skilled workers and quality control department work closely together to guarantee every piece of our fiber optic patch cord is excellent quality and looking. Our single mode fiber optic patch cables are fully compliant with international standards and are with very good quality and competitive prices.


    The features of fiber optic patch cord ensures extended service life. Because of the armored fiber cable, the fiber patch cord is enabled to be utilized in many harsh conditions and can effectively prevent damage caused by rats biting, humidity, crushing and stretching, the armored fiber optic patch cord plays an important role for connection of fiber optic devices inside computer rooms and buildings.


    It can be made up with different kinds of connectors such as the SC,FC,ST,LC,MU,MTRJ…connectors.

    Technical specifications:


    ItemUnitLC/SC/FC/ST Fiber Patch Cord
    SMMM
    Fiber Diameterum9/12565.5/12550/125
    Endface TypePCUPCAPCPCPC
    Insertion Lossdb≤0.2≤0.15≤0.2≤0.1≤0.1
    Return Lossdb≥45≥50≥60--
    Insert-pull Testdb≤0.2≤0.2≤0.3≤0.15≤0.15
    Interchangeabilitydb≤0.1≤0.1≤0.15≤0.1≤0.1
    Temperature Range-40~+80



    Features:

    ---Good durability
    ---Good exchangeability
    ---High temperature stability
    ---Low insertion loss and back reflection loss
    ---Superior Quality Standard PC/UPC/APC Polishing
    ---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

    Applications:

    Gigabit Ethernet; Active device termination; Telecommunication networks; Video;
    Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.
