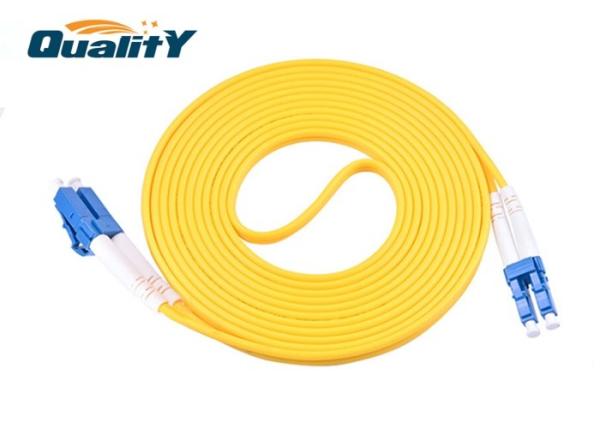

Duplex Jumper Lc Upc To Lc Upc Fiber Fiber Optic Patch Cord PVC , LSZH Material

    Buy cheap Duplex Jumper Lc Upc To Lc Upc Fiber Fiber Optic Patch Cord PVC , LSZH Material from wholesalers

    Buy cheap Duplex Jumper Lc Upc To Lc Upc Fiber Fiber Optic Patch Cord PVC , LSZH Material from wholesalers
    • Buy cheap Duplex Jumper Lc Upc To Lc Upc Fiber Fiber Optic Patch Cord PVC , LSZH Material from wholesalers

    Duplex Jumper Lc Upc To Lc Upc Fiber Fiber Optic Patch Cord PVC , LSZH Material

    Ask Lasest Price
    Brand Name : QualitY or QY
    Model Number : QPCLC UPC -DX
    Certification : ISO90012015, SGS
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 2000 Piece per day LC patch cord
    Delivery Time : 8-12 working days
    • Product Details
    • Company Profile

    Duplex Jumper Lc Upc To Lc Upc Fiber Fiber Optic Patch Cord PVC , LSZH Material

    Simgle mode lc upc duplex Jumper lc upc to lc upc fiber fiber optic patch cord


    Products description


    Optical fiber patchcord( fiber jumper)with ISO9001 certification, ROHS. Sometimes called a fiber optic patch cord is a length of fiber cabling fitted with LC, SC, FC, MTRJ or ST fiber connectors at each end. The LC, a smaller form factor fiber optic connector, is most commonly used. Fiber jumpers also come in hybrid varieties with one type of connector on one end and another type of connector on the other. Jumpers are used in the same manner as patch cords, to connect end devices or network hardware to the structured cabling system.


    Features:


    High dense spaces;
    Ceramic ferrules connectors;
    Half the size of standard connector;
    Low insertion loss,high return loss;
    Excellent mechanical endurance;
    High credibility and stability;
    Good in repeatability and exchangeability;
    100% Insertion,Return Loss, End face and Interference inspection.


    Specification


    ParameterSpecification
    Fiber patch cordPC(SM)UPC(SM)APC(SM)MM
    Insertion Loss(dB)≤0.2≤0.2≤0.3≤0.2
    Return Loss(dB)≤45≤50≤60≤40
    Interchangeability(dB)≤0.1
    Interchangeability(dB)≤0.2
    Plug Times(times)≥1000
    Tensil Strength(N)≥100
    Durability(dB)≤0.2
    Operating Temperature(℃)-45~+75
    Storage Temperature(℃)-45~+85

    Applications:


    Telecom Net
    Local Ring Net
    Optical Fiber Sensor
    Optical Fiber Test Equipment
    Optical Fiber Communication System
    FTTH,LAN,PON & Optical CATV.
