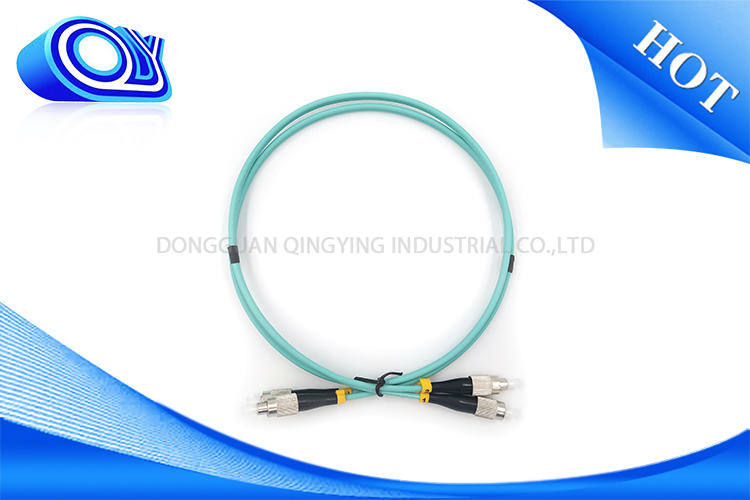

FTTH SM 9/125 um ST SC OM3 Fiber Opitc Patch Cord 2.0 / 3.0mm Custom

FTTH 2.0/3.0mm SM 9/125 um ST SC OM3 Fiber Opitc patch cord

Product Description

The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.

It also widely used for high bit rate data transmission,telecommunications,tesing instruments,
active device terminations,LAN/WAN and FTTX.

Technical specifications:

Item	Unit	LC/SC/FC/ST Fiber Patch Cord
		SM			MM
Fiber Diameter	um	9/125			65.5/125	50/125
Endface Type		PC	UPC	APC	PC	PC
Insertion Loss	db	≤0.2	≤0.15	≤0.2	≤0.1	≤0.1
Return Loss	db	≥45	≥50	≥60	-	-
Insert-pull Test	db	≤0.2	≤0.2	≤0.3	≤0.15	≤0.15
Interchangeability	db	≤0.1	≤0.1	≤0.15	≤0.1	≤0.1
Temperature Range	℃	-40~+80

Applications:
Gigabit Ethernet; Active device termination; Telecommunication networks; Video;
Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.
Features:

---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
---Good durability
---Good exchangeability
---High temperature stability
