    High Temperature Stability Fiber Optic Patch Cord Indoor FC SC ST LC Connectors

    Ask Lasest Price
    Brand Name : Qingying or QY
    Model Number : 0.9mm 2.0mm 3.0mm Indoor FC LC SC ST Connectors For Fiber Optic Patch Cord
    Certification : IEC 60794-2-10/11
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 50000pcs per week
    • Product Details
    • Company Profile

    High Temperature Stability Fiber Optic Patch Cord Indoor FC SC ST LC Connectors

    0.9mm 2.0mm 3.0mm Indoor FC SC ST Connectors For Fiber Optic Patch Cord

    Product Description

    Both ends of the optical fiber patch cord transceiver module wavelength must be consistent, that is to say the two ends of the optical fibre optical module must be the same wavelength, the simple discrimination method is the light module to the colour line.


    Optical fiber in use not excessive bending and winding, this will increase the light attenuation in the transmission process. Fiber jumper after use must use to protect the optical fiber attachment, dust and oil will damage the fiber coupling.

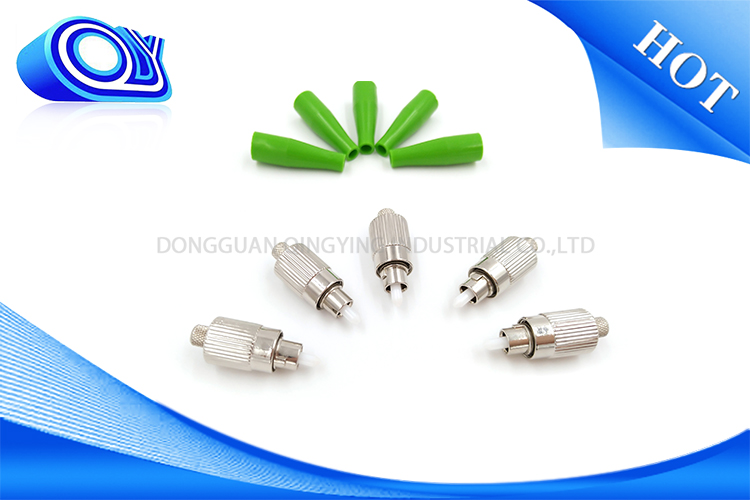

    This high precision, ceramic ferrule connector is equipped with an anti rotation key, reducing fiber endface damage and rotational alignment sensitivity of the fiber.


    Technical specifications:


    ContentTesting Condition(dB)
    SMMM
    APCUPCPC
    Optical Performance

    IL(dB)


    1310/1550nm LD Light0.20.20.20.2
    RL(dB)1310/1550nm LD Light65555035

    Environment

    Performance

    High Temperature

    +85℃,168H


    0.2
    Temperature cycle

    -40~+75℃,21cycle,168H

    0.2

    Humidity thermal(Fixed)

    5℃,95%R.H.,168H0.2
    Humidity thermal cycle

    10~+65℃,95%R.H.,21 cycle,168H

    0.2
    Mechanical PerformanceVibration10~55Hz,1.5mm(p-p)0.1
    Bending0.9kgf,-90°~+90°,100cycle0.1
    Torsion2.5kgf,10times/min,±180°,200times0.1n
    Anti-tension90N,10min0.1
    Dropping

    1.5 height, 8 times

    0.2
    Repeat10 Times inserts0.1
    Durability>1000times0.2

    2. Mechanical Performance and Working temperature


    ContentCharacterUnit
    Working Temperature-40~+85
    Storage Temperature-5~+50

    Φ3.0 Fibre Curl Radius


    >30mm
    Φ3.0 Anti-Tensile Strength>9.0Kgf
    Main Mechanical SizeSEE LAYOUT-

    3. 3D Index

    Type Content

    APCUPCLC
    Radius of Cury(mm)5-1210-257-25
    Apexoffset(um)0~+50
    FiberHeight(nm)-50~+50
    Angle(deg)7.5~8.5//

    Features:

    ---Good durability
    ---Good exchangeability
    ---High temperature stability
    ---Low insertion loss and back reflection loss
    ---Superior Quality Standard PC/UPC/APC Polishing
    ---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

    Applications:

    Gigabit Ethernet; Active device termination; Telecommunication networks; Video;


    Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.
