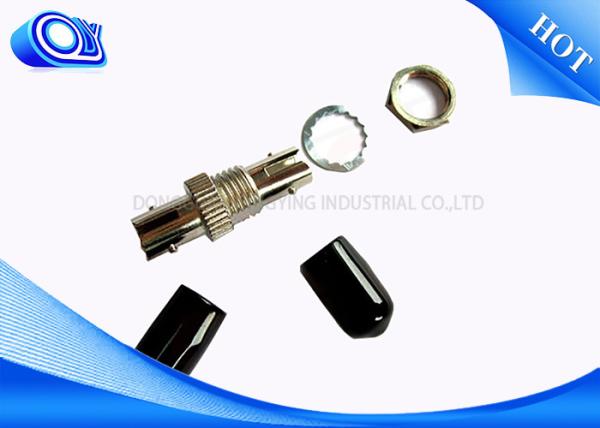

Simplex singlemode metal ST D Fiber Optic Adapter Manufacturers
product:
Fiber optic adapters (also known as bulkheads) are used to join two
fiber optic patch cables together.
They are available for use with either singlemode or multimode
patch cables.
ST Compatible adapters are comprised of a metal outer obdy and
inner assembly fitted with a precision alignment mechanism. Refer
to the diagram above for dimensional information. These adaptors
are precision made and manufactured to demanding specifications.
Then combination of a ceramic /phosphor bronze alignment sleeves
and precision metal housing provides consistent long-term
mechanical and optical performance .
Features :
1. Available in square ,D-shaped and rectangular mount .
2. Coupling body ,zinc alloy for long life.
3. Thread with nuts or snap-in coupling,easily install in panel
mount .
4. compliant with TLA/ELA 568A, Bellcore G-326 and IEC874-10
5. All parts compliant with Rohs.
Application :
.Telecommunication
.CATV
.LAN &WAN
.Network
.Broadband
.FTTX
Parameter
|
Unit | LC,SC,FC,ST,MTRJ,MPO |
| SM | MM |
| PC | UPC | APC | PC |
| Insertion Loss(Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 |
| Repeatability | dB | ≤0.2 |
| Durability | Time | >1000 |
| Operating Temperature | ℃ | -40~75 |
| Storage Temperature | ℃ | -40~85 |
1. Q: How can I get your quotation?
A: Please provide us informations as below:
1. Item Number.
2. Quantity.
3. Company Profile (Name, Tel, Fax, Address, and Webpage)
4. Any Other Relevant Details.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check
our quality.
3. Q: Terms of payment?
A: We accept payment as the following.
1).100% TT in advance.
2). 30% T/T deposit, 70% balance before delivery.
4. Q: Can you do OEM?
A: Yes we can.
5. Q: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20days usually.
6. Q: Can i get your e-catalog?
A: You can give me a inquiry, i will send it to your email.
7. We have been 10 years experience in this field. We are the
prefessional supplier that you can trust.
