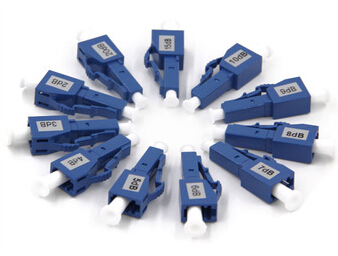

    Fixed Optical Attenuator 1dB 3dB 5dB 10dB 15dB LC Attenuator Male To Female fiber optic attenutor

    Ask Lasest Price
    Brand Name : Qingying or QY
    Model Number : LC Fiber Optic Attenuator
    Certification : ISO9001-2015
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000 Piece/Pieces per Week LC 5dB Fiber Optic Attenuator
    • Product Details
    • Company Profile

    Fixed Optical Attenuator 1dB 3dB 5dB 10dB 15dB LC Attenuator Male To Female fiber optic attenutor

    Fixed Optical Attenuator 1dB 3dB 5dB 10dB 15dB LC Attenuator Male To Female fiber optic attenutor

    Feature:


    v Good interchangeability and repeatability

    v Environmentally stable

    v Easy installation

    v Custom designed specifications

    v Low return loss

    v Readily panel mountable

    v Compact packing


    Application :


    --- LAN

    --- CATV

    --- FTTH

    --- Fiber optic sensors

    --- Testing instruments

    --- Telecommunications

    --- Multi-channel subscriber loop

    --- Optical transmission system

    --- Variable of attenuation ways and a bound of connector types


    Optical Performance:

    M-F Plug TypeF-F Adaptor Type
    Testing Wavelength(nm)SM: 1310nm/1550nm1310nm
    MM: 850nm/1300nm
    Attenuation Accuracy(dB)1-9dB; 0.5dB; 10-30dB; 10% of Attenuation Value
    Return Loss(dB)≥50dB (PC)≥50dB (PC)
    ≥60dB (APC)≥60dB (APC)
    Input Power (Max.) (mW)300
    Durability(dB)<0.2dB Typical, 1000 Matings
    Operating Temperature(°C)-40~+80
    Storage Temperature(°C)-40~+85



    Specification :


    parameterSM(9/125)MM(50/125,62.5/125)
    Attenuation values1dB to 20dB(1dB step),25dB,30dB1dB to 25dB(1dB step)
    Wavelength1310nm & 1550nm850nm &1300nm
    Attenuation Tolerance (dB)1-10dB<±1.0dB ( typical ) standard2dB,5dB,10dB<±1.0dB(typical ) standard
    11-25dB<±10% ( typical ) standard15dB<±10% ( typical ) standard
    1-10dB<±0.5dB ( typical ) premium2dB,5dB,10dB<±0.5dB(typical ) premium
    11-25dB<±5% ( typical ) premium15dB<±5% ( typical ) premium
    Return LossPC45 dB


    /

    UPC≥55 dB
    APC≥65 dB
    Attenuator modeFixed type, male to female type, In-line type, Variable type
    Operating Temperature-40°C~+75°C
    Storage Temperature-40°C~+85°C


    Resistance to high-power light source,

    With light weight, small size, high accuracy, good stability, various forms, convenient characteristic.
