12 / 24 Core Horizontal Fiber Optic Splice Closure Single Core With Ribbon Fiber

    Buy cheap 12 / 24 Core Horizontal Fiber Optic Splice Closure Single Core With Ribbon Fiber from wholesalers

    Buy cheap 12 / 24 Core Horizontal Fiber Optic Splice Closure Single Core With Ribbon Fiber from wholesalers
    • Buy cheap 12 / 24 Core Horizontal Fiber Optic Splice Closure Single Core With Ribbon Fiber from wholesalers

    12 / 24 Core Horizontal Fiber Optic Splice Closure Single Core With Ribbon Fiber

    Ask Lasest Price
    Brand Name : Qingying or QY
    Model Number : Horizontal 12/24 Core Fiber Optic Splice Closure
    Certification : ISO9001 2015
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 Piece/Pieces per Week
    Delivery Time : 8- 12 working days
    • Product Details
    • Company Profile

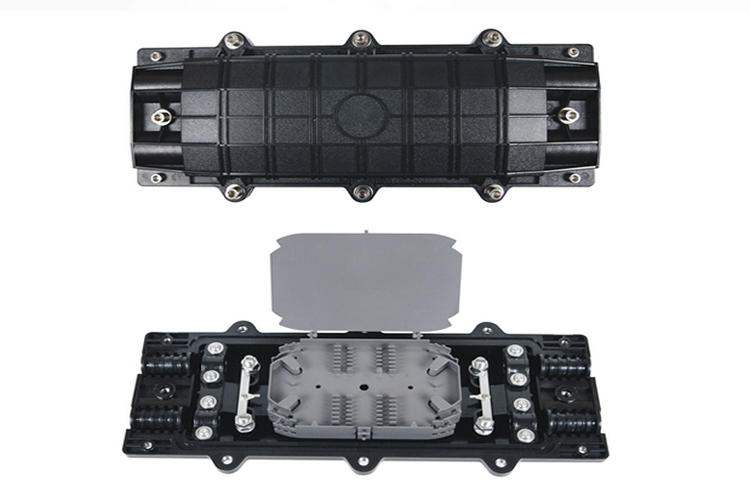

    12 / 24 Core Horizontal Fiber Optic Splice Closure Single Core With Ribbon Fiber

    Horizontal Fiber Optic Splice Closure for for Single Core and Ribbon Fiber

    Horizontal Fiber optic splice closure is suitable for single core and ribbon fiber,

    they are installed on wall ,direct-buried ,aerial ,pipelined .


    The housing of box is made of high-grade PC plastic, the tray is made of ABS plastic ,these material to ensure the lifetime.


    We use speical rubber to seal the cover ,which not only ensure the sealing proformance ,but also increases the oxidation resistance ,it completely reaches the repetition sealing requirements and realized the repetition use of the products.


    The installation accessories provided:sealing tape 1pc,pvc insulation tape 1pc,splice pipe ,nylon tie 4pcs,plastic spanner 1pc,sticker,hanging hook 2pcs,wrench 1pc


    Main technical Indexes:


    Seal performance : the pressure in the closure is 100Kpa,put the closure into the water for 15minutes,there is no air bubble ,and observed it for 24 hours ,there is no change of air pressure

    Re-entry performance:after 3 times of normal operations ,it can still be up to the seal performance standard Insulation resisitance: ≥2x104

    Withstand voltage strength :there is no puncture and no arc-cover after the function of 15KVDC/1min.

    ModelDimension (MM)G.W./N.W(kg)MaterialInlet/OutletDiameter of fiber cableCapacityDimension /CTN (cm)
    QYS202400*180*852.9/2.4PC3inlets and 3outletsΦ16mm Φ20mm Φ23mmBunchy:12-24(cores) Ribbon :Max 48(cores)
