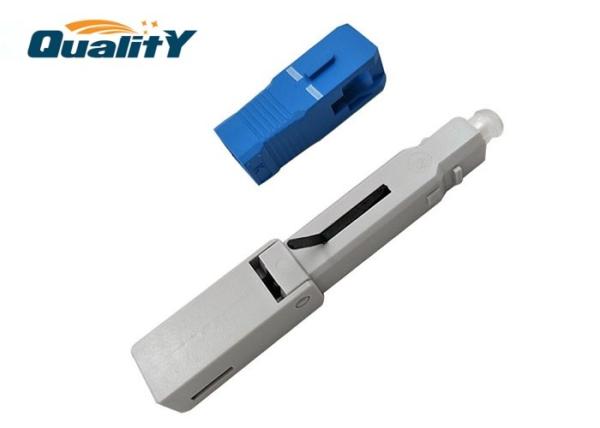

Indoor Outdoor Ftth FTTX SC UPC Quick Connector / SC Fiber Optic Connector Assembly

Ask Lasest Price
Brand Name :	QualitY or QY
Model Number :	QSC53KJ1-UPC
Certification :	ISO90012015
Price :	USD 0.58-0.99
Payment Terms :	L/C, T/T, Western Union,Paypal
Supply Ability :	5000pcs per day
Delivery Time :	7 working days

Add to Cart

Product Details
Company Profile

Indoor Outdoor Ftth FTTX SC UPC Quick Connector / SC Fiber Optic Connector Assembly

Description:

Features:

1. FTTH project usable
2. Field installable
3. Insert loss less than 0.5dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance

Advantages:

1.Low Insertion Loss

2.Dual v groove design for high stability and reliability

3.Durable life

4.Easy installation

5.OEM service for accessories

Application:

1. FTTH project usable

2.LAN

Specifications

ITEM	Technical Parameters
Applicable for	Drop cable / Indoor cable 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter	SM(9/125), MM(50/125, 62.5/125) 125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	> 45db(UPC), > 55db(APC)
Using temperature	-40~+75°C
On-line tensile strength (20 N)	IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times)	IL ≤ 0.5dB RL ≤ 5dB

Indoor Outdoor Ftth FTTX SC UPC Quick Connector / SC Fiber Optic Connector Assembly
