    4-Core Tactical Armored Cable For Outdoor Communication

    Ask Lasest Price
    Brand Name : Qingying(QY)
    Model Number : QY-TC-001
    Certification : ISO9001,CE,ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, PayPal
    Supply Ability : 2000 Meter/Per Week
    Delivery Time : 7-15 days after deposit
    • Product Details
    • Company Profile

    4-Core Tactical Armored Cable For Outdoor Communication

    4-Core Tactical Armored Cable For Outdoor Communication


    4-Core Tactical Armored Cable For Outdoor Communication


    Overview

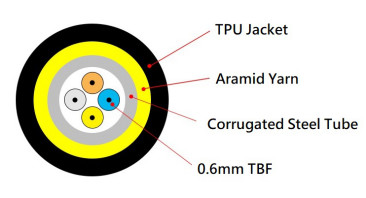

    Armored fiber cable features a protective corrugated steel tube making it ideal for tactical and harsh outdoor applications. Its loose tube construction surrounds the fibers in a protective steel tube, allowing for expansion and contraction of the cable without damage to the fibers. The cable built with a stainless-steel tube inside which also can protect the fibers from damages due to rats and wild animals.


    Features

    • High mechanical strength
    • High abrasion resistance
    • Superior shear strength
    • High elasticity jacket
    • Enhanced crush resistance
    • ROHS, CE compliant

    Application

    • FTTA
    • Inter-panel connection
    • Broadcasting
    • Backbone installation
    • Military communication system
    • Telecommunication network
    • Industrial

    Specification


    Fiber TypeG.652DG.657A150/125μm62.5/125μm
    Attenuation850nm≤3.0dB/km≤3.0dB/km
    1300nm≤1.0dB/km≤1.0dB/km
    1310nm≤0.36dB/km≤0.35dB/km
    1550nm≤0.22dB/km≤0.21dB/km
    Bandwidth850≥500MHZ·km≥500MHZ·km
    1300≥1000MHZ·km≥600MHZ·km
    NA(Numerical Aperture)0.200±0.0150.275±0.015
    Cut-off Wavelength≤1260nm≤1260nm
    Fiber Count4 Cores
    Fiber Diameter0.6mm
    Cable Diameter5.0mm
    Cable Weight36kg/km
    Tensile StrengthLong Term600N
    Short Term1,200N
    Crush ResistanceLong Term800N/100m
    Short Term2,000N/100m
    Bending RadiusStatic20D
    Dynamic10D
    • The spec may change due to improvements without prior notice.
