Field Installable Fiber Quick Connector

Ask Lasest Price
Brand Name :	QualitY or QY
Model Number :	QSC52ZJ1-APC
Certification :	ISO90012015, SGS
Price :	0.53USD-0.72USD per pcs
Payment Terms :	L/C, T/T, Western Union,Paypal
Supply Ability :	5000pcs per day
Delivery Time :	8-12 working days

Add to Cart

Product Details
Company Profile

Field Installable Fiber Quick Connector

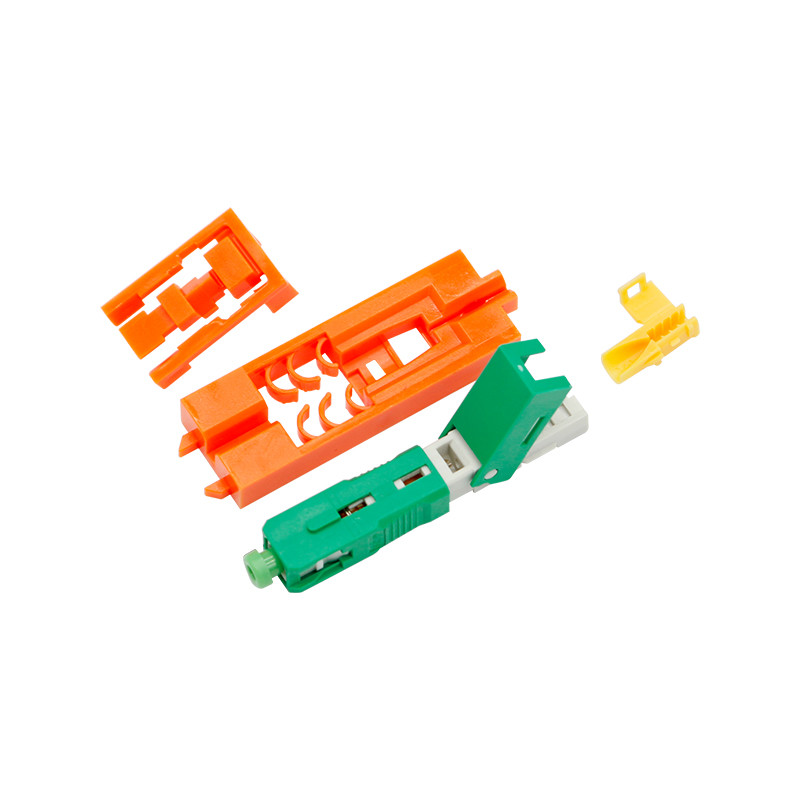

Fiber Optic SC APC Fiber Quick Connector Field Installable Connector

Field Installable Fiber Quick Connector

Overview

QY's SC single piece connectors are designed for quick and easy termination either on-site or in the factory. The SC range covers Multimode and Singlemode options which include all colours - Beige, Aqua, Violet, Blue and Green options for all Multimode and Singlemode & APC fibre types. All connectors have precision Zirconia ceramic ferrules which are pre-radiused for rapid polishing/finishing.

Features

ROHS, CE compliant
High Reliability
Low return losses due to the APC polish
Easy installation due to the SC connector
Effective data transmission
Reliable optical performance

Application

Fibre Optic Cable Distribution network
Fibre To The Home (FTTH) network
Highly stable and reliable performance
High Success Rate design and technology
Reusable termination capability (up to 5x)
Time-saving

Specification

Item Name	Unit	SC/APC Field Installable Connector
Item Name	Unit	Grade S (Standard)	Grade P (Premium)
Fiber Type	um	9/125	9/125 (Corning)
Polishing	---	APC
Insertion Loss	dB	≤0.5	≤0.3
Return Loss	dB	≥50	≥60
Repeatability	dB	≤0.1
Interchangeability	dB	≤0.2
Operating Temp.	℃	-25 ~ +70
Durability	times	≥1,000
Reusability	times	≥5
Tensile Strength	N	≥50
