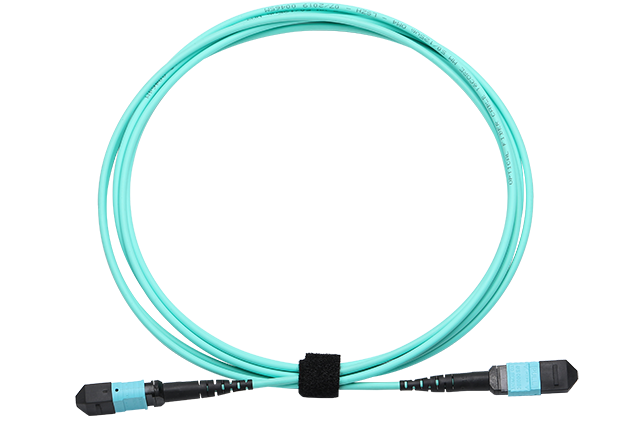

OM3 fiber cable 12 cord / 24 core MPO / MTP Optical fiber patch
cord
MPO connector is a type of optical fiber connector. MPO
(Multi-fiber Push On) is a type of multi-core optical fiber
connector, which is adopted by the IEEE standard as a type of
connector for 40G/100G transmission. MPO high-density optical fiber
pre-connection system is currently mainly used in three major
fields: the application of high-density environment in data
centers, the application of optical fiber to the building, and the
connection application in optical splitter, 40G, 100G, QSFP+ and
other optical transceiver equipment.
Advantage
- Small size, smaller than SC type connector;
- High precision, precise MT guide needle and guide hole ensure
accurate fiber alignment;
- High density, with precise geometric design, it can support 12~72
cores or even 96 cores of optical fiber connection.
Features:
*Suitable for MPO/MTP application
*High-density and small design;Easy and fast installation
*12 and 24 fiber versions – 12 LC (Duplex) / SC (Simplex) optical
parts
*Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and
Single mode(OS1/2) fiber.
*Factory-terminated and -tested cable and apparatus for instant
field connections with guaranteed quality and performance.
*Metallic shell with high strength protect the inner fibers
effectively
*Supports easy reconfiguration for moves, adds, and changes
Application:
Data Centre Infrastructure
Storage Area Network-Fiber Channel
Emerging 40 & 100Gps Protocols
Parameters:
| Connector type | MPO to MPO |
| Fiber Type | OM3 |
| Cable Color | Aqua |
| 0.9mm Tube Material | LSZH |
| Fiber Count | 12 Cores |
| Length | Customized per requirements |
| MPO Insertion Loss | ≤ 0.3dB |
| MPO Return Loss | ≥30dB OM3 |
| Work wavelength | 850nm~1300nm |
| Outer diameter | 5.0mm-7.0mm |
| Operation Temperature | -40°C ~ +80°C |
| Storage Temperature | -40°C ~ +85°C |
Company Profile:
Dongguan Qingying Industry Co., Ltd is a professional manufacturer
dedicated in communication industry for FTTH area over 10 years.
Which was founded in 2012, the headquarters is located in Dongguan,
one of the "world factory" cities, and the branch factory in
Chongqing, with total more than 10,000㎡ plant.
QY has passed ISO9001, ROHS, CE certificates. Independent R&D
team, which has successively obtained 20 types of products patents.
Customers cover all over the world, and established stable and
lasting cooperative relations with various communication operators.
