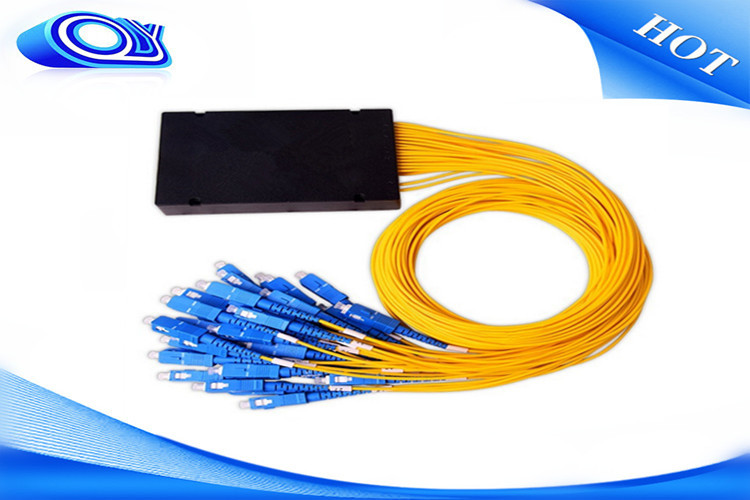

Singlemode G657A cable Optical PLC Splitter 1x16 plc splitter ABS type PLC fiber optic splitter box

Ask Lasest Price
Brand Name :	QY-SP0528
Model Number :	*PLC-S-2N0.9,2.0,3.0-SC/UPC-1m*
Certification :	IEC 60794-2-10/12
Price :	negotiation
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	2000pcsper day
Delivery Time :	Shipped in 10 days after payment

Add to Cart

Product Details
Company Profile

Singlemode G657A cable Optical PLC Splitter 1x16 plc splitter ABS type PLC fiber optic splitter box

Product Description

The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON.GPON.BPON.FTTX.FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.

Outline

Ports		2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)		1260~1650
Insertion Loss (dB)	Max(P/S)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.8	20.5/21.0
Loss Uniformity (dB)	Max	0.6	0.6	0.8	1.2	1.5	2.5
PDL (dB)	Max	0.15	0.15	0.25	0.3	0.3	0.3
Return Loss (dB)	Min	UPC:50 APC:55
Directivity (dB)	Min	55
Standard Input Fiber		Bend Insensitive SM Single Fiber(ITU G.657A)
Standard Output Fiber		Bend Insensitive SM Ribbon Fiber(ITU G.657A)
Standard Output Color		Blue, Orange, Green, Brown, Grey, White, Red ,Black(TIA/EIA 598-B)
Max. Optical Power(mw)		300
Humidity Range(rh)		5%~85%
Operating Temperature(℃)		-40~+85
Storage Temperature(℃)		-40~+85
Connector Options		FC/SC/LC/ST/MU
Packaging Options		Bare DeviceMini TubeABS ModuleLGX Box19''/23'' Rack-mount
Telcordia GR-1221-CORE&G-1209-CORE Compliant. Premium spec available upon request. (P/S: Premium Grade/Standard Grade) *Typical value at +23℃ without connectors losses.

Singlemode G657A cable Optical PLC Splitter 1x16 plc splitter ABS type PLC fiber optic splitter box

FAQ

Q 1. what's the payment term?

A. We accept TT, 30% deposit and 70% balance aganist copy of BL, Western

Union.

Q 2. how's the delivery time ?

A. usually it will take about 10~15days for production

Q 3. tell me the standard of package?

A. For the small capacity, it uses carton.
