Waterproof ODF Fiber Distribution Panel Plug - In Style Adapter Panels

Ask Lasest Price
Brand Name :	Qingying or QY
Model Number :	Waterproof ODF Fiber Optic Fiber Patch Panel
Certification :	ROHS ISO9001
Price :	negotiation
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000 Pieces per Day

Add to Cart

Product Details
Company Profile

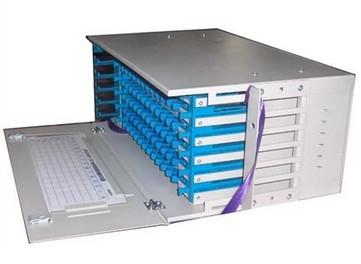

Waterproof ODF Fiber Distribution Panel Plug - In Style Adapter Panels

Waterproof ODF Fiber Optic Fiber Patch Panel Plug-in style adapter panels

Fiber optic patch panel is also called fiber distribution panel. Its main function is to terminate the fiber optic cable and provide connection access to the cable’s individual fibers. Fiber patch panels are termination units, which are designed to provide a secure, organized chamber for housing connectors and splice units. Fiber patch panels are available in rack mounted or wall mounted.

Both types can house, organize, manage and protect fiber optic cable, splices and connectors. Rack mount panels is usually 19" or 23" universal width. The height of patch panel can be 1u, 2u, 3u, 4u, 6u, etc. The opening of the optical fiber patch panels can be slidable or fixed or revolving. Wall mount patch panel is more customized, it can be any structure and dimension. And the patch panels can be used for indoor or outdoor application.

Feature of Fiber Optic Patch Panel

1. 19"standard installation, adjustable position in forward and backward direction.

2. Suitable for being installed in different kinds of optical distribution frame or cabinet.

3. Compact aluminum body with electrostatic spraying surface, light structure and fine-looking appearance

4. Adapter panels are selectable with FC/SC/ST/LC type, according to requirement.

5. Plug-in style adapter panels can be exchange flexibly, easy for application and configuration.

6. Splicing module on the rear side is removable and suitable for field operation and maintenance.

7. Unique plastic retainer clips for optical fibers are attached, protecting the spliced fibers sufficiently.

8. Optical cable fixing and grounding unit is fit for different application.

Optical Performance	Single Mode		Multi Mode
Insertion Loss(dB)	≤0.3		≤0.3
Return Loss(dB)	≥50 (PC)		N/A
	≥60 (APC)
Repeatability(dB)	≤0.1dB
Durability(dB)	≤0.2dB Typical Change, 1000 Matings
Tensile Strength(N)	100
Operating Temperature(°C)	-40~+80
Storage Temperature(°C)	-40~+85
Endface Geometry
Parameter	2.5um Ferrule		1.25 um Ferrule
	PC	APC	PC	APC
Radius of Curvature(mm)	10~25	5~15	7~15	5~15
Apex Offset(mm)	0~50	0~50	0~50	0~50
Fiber Height(nm)	±50	±50	±50	±50
Angle(°)	----	7.7-8.3	----	7.7-8.3
