LC / UPC Fiber Optic Pigtail 50 / 125 MM OM3 Simplex LC Fiber Optic Patch Cord

Product Categories

Dongguan Qingying Industry Co., Ltd.

Contact Now

Ask Lasest Price
Brand Name :	Qy or Qingying
Model Number :	LC/UPC Fiber Optic Pigtails 50/125 MM om3 LC optical fiber pigtail
Certification :	Telcordia GR-326 Core and ROHS
Price :	negotiation
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50000pcs per week

Add to Cart

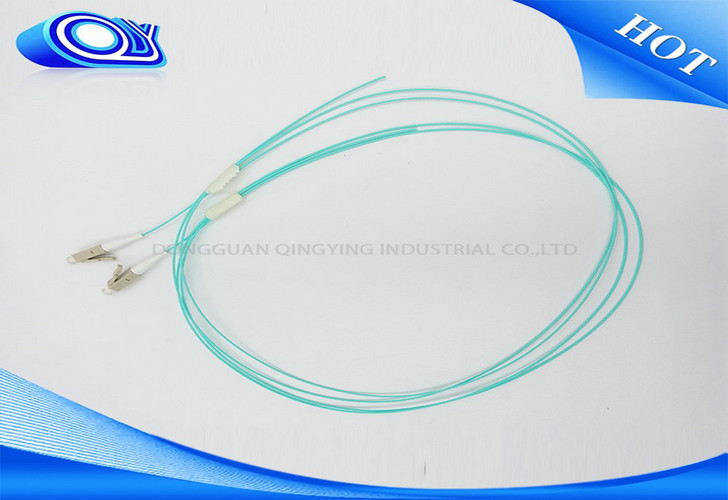

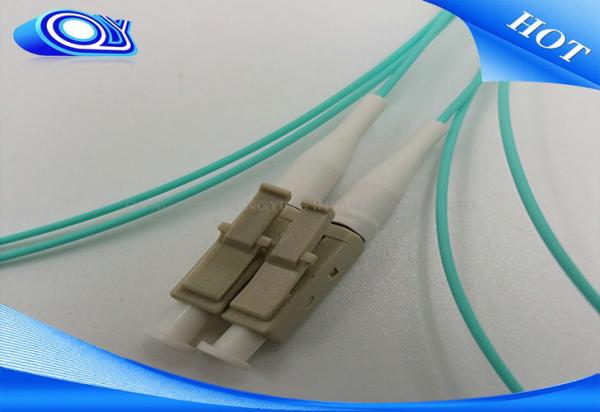

LC/UPC Fiber Optic Pigtails 50/125 MM OM3 LC Simplex pigtail

Product Description

Specifications
1. SC,LC,FC,ST,MU,MTRJ,D4,DIP,E2000
2. 0.9mm / 2.0mm / 3.0mm
3. SM/MM SX/DX

Technical specifications:

Pigtail Connector	PC (SM)	UPC (SM)	APC (SM)	MM
Return Loss (dB)	≥45	≥50	≥60	≥35
Insertion Loss (dB)	≤0.2 (max≤0.3)
Repeatability (dB)	≤0.1
Durability(1/Matings)	≥500
Operation Temperature (°C)	-25~+70
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber	9/125um, 50/125um,62.5/125um,ect
diameter	0.9mm 2.0mm, 3.0mm etc
Cable material	PVC, LSZH
Cores	Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc

Features:

--- Good durability.

--- Good exchangeability.

--- High temperature stability.

--- Low insertion loss and back reflection loss.
--- Superior Quality Standard PC/UPC/APC Polishing.

--- Standard: Telcordia GR-326-CORE, TIA/EIA and IEC.

Applications

Local area networks. wide area networks. cables TV

Testing instruments, active device connection.

Fiber to the home (FTTH)

Telecommunication networks
