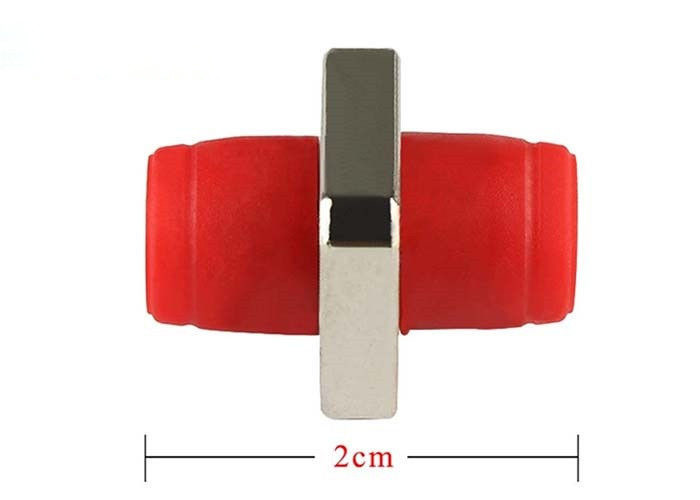

FC Square Copper Optical Cable Adapter Coupler for FTTH

Ask Lasest Price
Brand Name :	Qingying( QY)
Model Number :	Square Copper Adapter Fiber Optic Adapter With FC Type
Certification :	ISO90012015
Price :	negotiation
Payment Terms :	Western Union, T/T, L/C
Supply Ability :	250000pcs per week FC SM Square Copper Adapter

Add to Cart

Product Details
Company Profile

FC Square Copper Optical Cable Adapter Coupler for FTTH

FC Square Copper Optical Cable Adapter Coupler for FTTH

Description

Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together.
They are available for use with either singlemode or multimode patch cables.

Fiber Optic Adaptor (also called coupler, or flange coupler) is the device to couple two connectors together. QY’s adaptor adopts high precision alignment sleeve to keep high reliability and better performance. The color of housing is available in different colors or specified by customer, and with options for flange or flangeless body.

FC Square Copper Optical Cable Adapter Coupler for FTTH

Feature

1, LC/SC/FC/ST Type Optional
2, UPC or APC Optional
2, SM or MM Optional
3, With/Without flange Optional
4, Simplex , Duplex or Quad Optional
5, Zirconia Sleeve ,Compact design
6, Low insertional loss, High return loss
7, Comply with IEC, Telcordia GR 326 and JIS standard

Application

CATV
Telecommunication networks
Test equipment
Local Area Networks(LANs)
Data processing networks

Specification

Item Name	Unit	SPECIFICATIONS
		Grade S (Standard)	Grade P (Premium)
△IL(Insertion Loss)	dB	≤ 0.2	≤ 0.1
Interchangeability	dB	≤ 0.2
Repeatability	dB	≤ 0.1
Durability	times	≥ 1,000
Operating Temp.	°C	-25 ~ +70
Fiber Count		Simplex

FC Square Copper Optical Cable Adapter Coupler for FTTH

FAQ

Q1: How do you guarantee the quality?

A1: We are an ISO certified factory

A2: We always start with pilot production to confirm everything complied with customers’ spec.

A3: In mass production, we have strictly IQC, IPQC, and FQC processes to confirm the quality of final products

A4: Before shipment, we also accept the customer's inspector to confirm the quality of goods.

Q2: Can you factory pass the factory audit?

A2: Yes, we welcome factory audit and we could pass it dut to we already are an ISO certified factory.

Q3: What's the product's lead time?

A3: It depends. For the sample below 5pcs, the lead time is usually 1 day, and for bulk production, the time will be 5-30 days

after receiving the deposit.

Q4: Can I have my own logo on the products?

A4: Yes, we welcome the custom-made logo. The logo could be stamped, lasered, and engraved.

Q5: What's your payment term?

A5: Our payment term is 30% deposit, and 70% balance before shipment.

Q6: Do you offer any other goods?

A6:Yes. Our factory mainly offers fast connectors, adapters, patch cords, attenuators, plc splitters, etc. However, we serve all

requests from customers with pleasure.
