Brand Name : | Qingying |
Model Number : | ODVA /PDL LC Waterproof Simplex Soket |
Certification : | IEC 60794-2-10/11 |
Price : | negotiation |
Payment Terms : | Western Union, L/C, T/T |
Supply Ability : | 50000pcs per week |

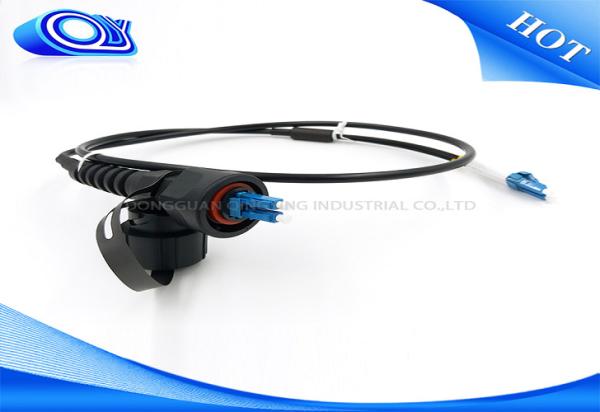

Outdoor IP Harsh PDLC/ODVA 7.0mm 2 Cores Fiber Optic Patch Cord
manufactured is designed for outdoor IP harsh environment. This
patch cord uses standard size of Duplex LC Connectors,
and the outer housing is metal protective PDLC/ODVA device.
These patch cords meet with the functions of waterproof, dustproof
and are widely used in FTTA,
Base station, and the outdoor waterproof condition.
Technical specifications:
Item | Unit | LC/SC/FC/ST Fiber Patch Cord | ||||
SM | MM | |||||
Fiber Diameter | um | 9/125 | 65.5/125 | 50/125 | ||
Endface Type | PC | UPC | APC | PC | PC | |
Insertion Loss | db | ≤0.2 | ≤0.15 | ≤0.2 | ≤0.1 | ≤0.1 |
Return Loss | db | ≥45 | ≥50 | ≥60 | - | - |
Insert-pull Test | db | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.15 | ≤0.15 |
Interchangeability | db | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.1 | ≤0.1 |
Temperature Range | ℃ | -40~+80 |
1. Standad LC Duplex connector, can be connected with normal LC
Adapters
2. Light weight,waterproof, dustproof, moistureproof , Metal hard
housing.
3. Wall seal design,easy operation, strong and durable.
4. Light weight, waterproof, dustproof, moisture proof, Metal hard
housing.
Application
Optical Networks
Testing / Measurement Instruments
Fiber To the Home
CATV System
Telecommunications
![]() |
