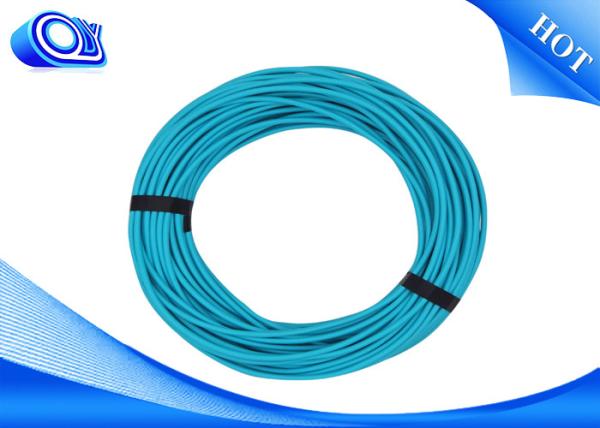

Multimode Fiber Optic Patch Cord With The 50 / 125um Jumper

Ask Lasest Price
Brand Name :	Qingying or QY
Model Number :	Multimode Fiber Optic Patch Cord
Certification :	IEC 60794-2-10/11
Price :	negotiation
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	50000pcs per week

Add to Cart

Product Details
Company Profile

Multimode Fiber Optic Patch Cord With The 50 / 125um Jumper

Product Description

Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.

Technical specifications:

Item	Unit	LC/SC/FC/ST Fiber Patch Cord
		SM			MM
Fiber Diameter	um	9/125			65.5/125	50/125
Endface Type		PC	UPC	APC	PC	PC
Insertion Loss	db	≤0.2	≤0.15	≤0.2	≤0.1	≤0.1
Return Loss	db	≥45	≥50	≥60	-	-
Insert-pull Test	db	≤0.2	≤0.2	≤0.3	≤0.15	≤0.15
Interchangeability	db	≤0.1	≤0.1	≤0.15	≤0.1	≤0.1
Temperature Range	℃	-40~+80

The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.

The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.

The 9/125μm single mode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.

Features:

---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
-- Good durability
---Good exchangeability
---High temperature stability

Applications:

Gigabit Ethernet; Active device termination; Telecommunication networks; Video;

Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.

CIV Assessment report (627K).pdf
