6 Cores Fiber Optic Outdoor Cable Insertion Loss < 0.3dB

Ask Lasest Price
Brand Name :	Qingying
Model Number :	PDLC Waterproof Fiber Optic Patch Cord
Certification :	IEC 60794-2-10/11
Price :	negotiation
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	50000pcs per week

Add to Cart

Product Details
Company Profile

PDLC 2 / 4 / 6 Cores Fiber Optic Outdoor Cable Insertion Loss < 0.3dB

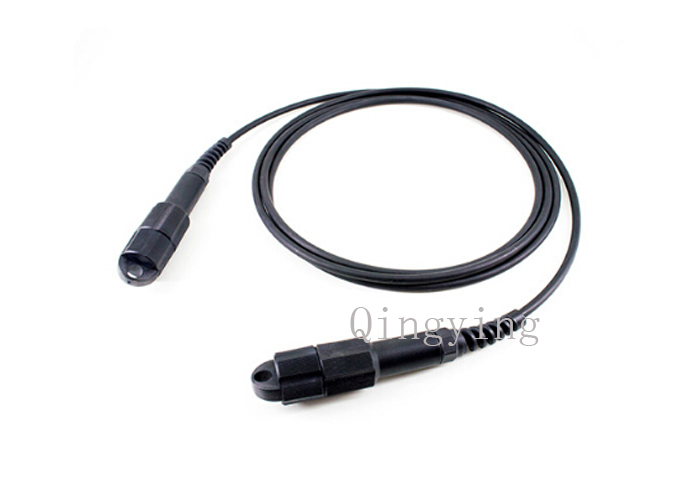

PDLC 2 Cores ,4Cores ,6Cores Waterproof Outdoor Fiber Optic Patch Cord

Product Description

PDLC Waterproof fiber optic patch cord is standard size for Duplex LC Connectors, and the outer housing with metal protective device.This patch cords widely used in FTTA, Base station, and the outdoor waterpoof condition.

The connecting is safe and reliable. Also have the functions of waterproof, dustpoof.

These patch cords meet with the functions of waterproof, dustproof and are widely used in FTTA,
Base station, and the outdoor waterproof condition.

Technical specifications:

Item	Unit	LC/SC/FC/ST Fiber Patch Cord
		SM			MM
Fiber Diameter	um	9/125			65.5/125	50/125
Endface Type		PC	UPC	APC	PC	PC
Insertion Loss	db	≤0.2	≤0.15	≤0.2	≤0.1	≤0.1
Return Loss	db	≥45	≥50	≥60	-	-
Insert-pull Test	db	≤0.2	≤0.2	≤0.3	≤0.15	≤0.15
Interchangeability	db	≤0.1	≤0.1	≤0.15	≤0.1	≤0.1
Temperature Range	℃	-40~+80

Features

1. Standad LC Duplex connector, can be connected with normal LC Adapters
2. Light weight,waterproof, dustproof, moistureproof , Metal hard housing.
3. Wall seal design,easy operation, strong and durable.

4. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.

Application

Optical Networks
Testing / Measurement Instruments
Fiber To the Home
CATV System
Telecommunications
