FTTH SC LC FC ST UPC APC Fiber Optic Patch Cord Cable Outdoor / Indoor

Ask Lasest Price
Brand Name :	Qingying or QY
Model Number :	Outdoor Indoor SC UPC Connectors For Fiber Optic Patch Cord Cable
Certification :	IEC 60794-2-10/11
Price :	negotiation
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	50000pcs per week

Add to Cart

Product Details
Company Profile

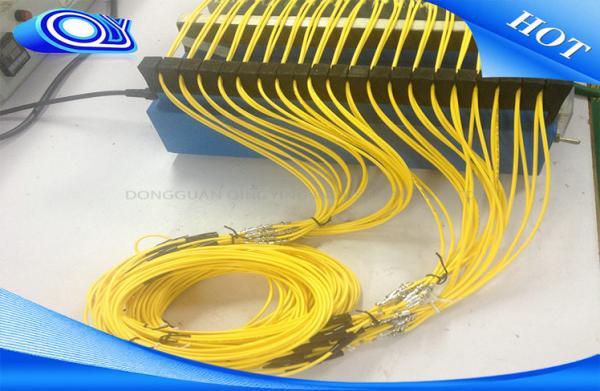

FTTH SC LC FC ST UPC APC Fiber Optic Patch Cord Cable Outdoor / Indoor

The key is also used for repeatable alignment of fibers in the optimal, minimal loss position.

Multimode versions of this connector are also available.

Product Description

Both ends of the optical fiber patch cord transceiver module wavelength must be consistent, that is to say the two ends of the optical fibre optical module must be the same wavelength, the simple discrimination method is the light module to the colour line.

Optical fiber in use not excessive bending and winding, this will increase the light attenuation in the transmission process. Fiber jumper after use must use to protect the optical fiber attachment, dust and oil will damage the fiber coupling.

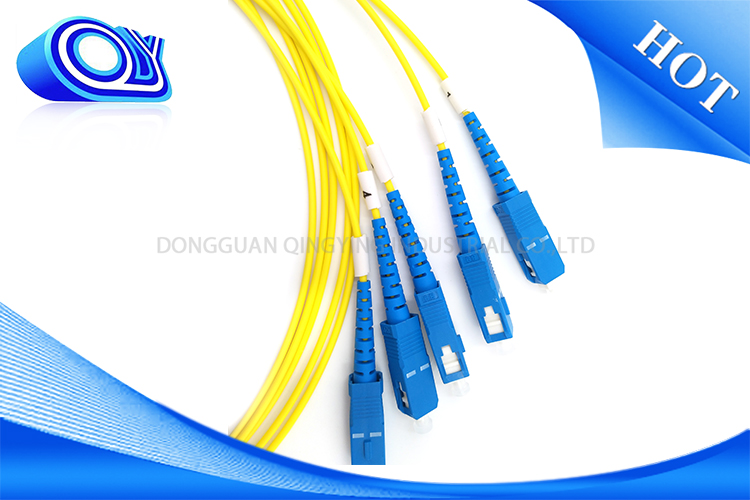

This high precision, ceramic ferrule connector is equipped with an anti rotation key, reducing fiber endface damage and rotational alignment sensitivity of the fiber.

Technical specifications:

Content		Testing Condition	(dB)
			SM			MM
			APC	UPC	PC
Optical Performance	IL(dB)	1310/1550nm LD Light	0.2	0.2	0.2	0.2
	RL(dB)	1310/1550nm LD Light	65	55	50	35
Environment Performance	High Temperature	+85℃,168H	0.2
	Temperature cycle	-40~+75℃,21cycle,168H	0.2
	Humidity thermal(Fixed)	5℃,95%R.H.,168H	0.2
	Humidity thermal cycle	10~+65℃,95%R.H.,21 cycle,168H	0.2
Mechanical Performance	Vibration	10~55Hz,1.5mm(p-p)	0.1
	Bending	0.9kgf,-90°~+90°,100cycle	0.1
	Torsion	2.5kgf,10times/min,±180°,200times	0.1n
	Anti-tension	90N,10min	0.1
	Dropping	1.5 height, 8 times	0.2
	Repeat	10 Times inserts	0.1
	Durability	>1000times	0.2

The fiber optic patch cord mainly used on patch panel or for the connection between outlets and

terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing

instruments,active device terminations,LAN/WAN and FTTX.

If the fiber optic connector is dirty, you can use a cotton swab dipped in alcohol cleaning, otherwise it

will affect the quality of communications.

2. Mechanical Performance and Working temperature

Content	Character	Unit
Working Temperature	-40~+85	℃
Storage Temperature	-5~+50	℃
Φ3.0 Fibre Curl Radius	>30	mm
Φ3.0 Anti-Tensile Strength	>9.0	Kgf
Main Mechanical Size	SEE LAYOUT	-

3. 3D Index

Type Content	APC	UPC		LC
Radius of Cury(mm)	5-12	10-25		7-25
Apexoffset(um)	0~+50
FiberHeight(nm)	-50~+50
Angle(deg)	7.5~8.5		/

Applications:

Gigabit Ethernet; Active device termination; Telecommunication networks; Video;

Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.

CIV Assessment report (627K).pdf

https://verified.chn.tuv.com/Report/ComplexReport.aspx?key=ac6bfb76-132b-4b2f-ac52-9ea75f884b7a
