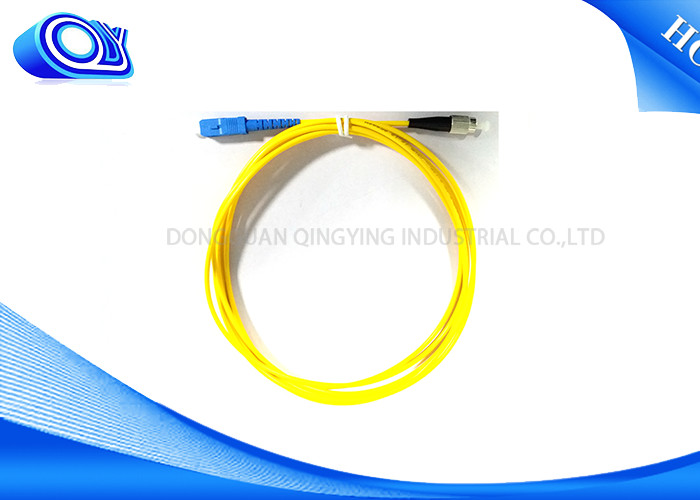

Yellow Single Mode Fiber Optic Patch Cable G652D 3.0 mm 2.0mm 0.9mm

Ask Lasest Price
Brand Name :	Qingying
Model Number :	QY
Certification :	ISO90012015
Price :	negotiation
Payment Terms :	T/T, E-checking
Supply Ability :	10000pcs per week
Delivery Time :	Shipped in 7 days after payment

Add to Cart

Product Details
Company Profile

Yellow Single Mode Fiber Optic Patch Cable G652D 3.0 mm 2.0mm 0.9mm

G652D 3.0 mm 2.0mm cable ftth patch cord fiber optic patch cord

Technical Data

Receiving Optical Power	dBm	-9 ~ +2
Optical Return Loss	dB	>45
Optical Receiving Wavelength	nm	1100 ~ 1600
Optical Connector Type		FC/APC or SC/APC
Fiber Type		Single Mode
C/N	dB	≥ 51(-2dBm input)
C/CTB	dB	≥ 65
C/CSO	dB	≥ 60
Frequency Range	MHz	45 ~862
Flatness in Band	dB	±0.75
Rated Output Level	dBμV	≥ 108
Max Output Level	dBμV	≥ 112
Output Return Loss	dB	≥16(45-550MHz)	≥14(550-862MHz)
Output Impedance	Ω	75
Electronic Control EQ Range	dB	0~10
Electronic Control ATT Range	dBμV	0~20
General Performance
Supply Voltage	V	AC(150~265)V or AC(35~90)V
Operating Temperature	°C	-40~60
Consumption	VA	≤ 30
Dimension	mm	240(L)x215(W)x150(H)
Net Weight	Kg	4.3

Note: The forward RF parameters are tested under the condition of using GaAs 25dB power doubly module in the last stage. Use other module; the parameters will be slightly different.

Company Information

Qingying specializes in the manufacture and sale of outdoor fiber optic cables/ indoor fiber optic cables/FTTH drop fiber optic cables/ADSS cable/OPGW cable/OPPC cable etc..We have passed ISO9001 certification standards.

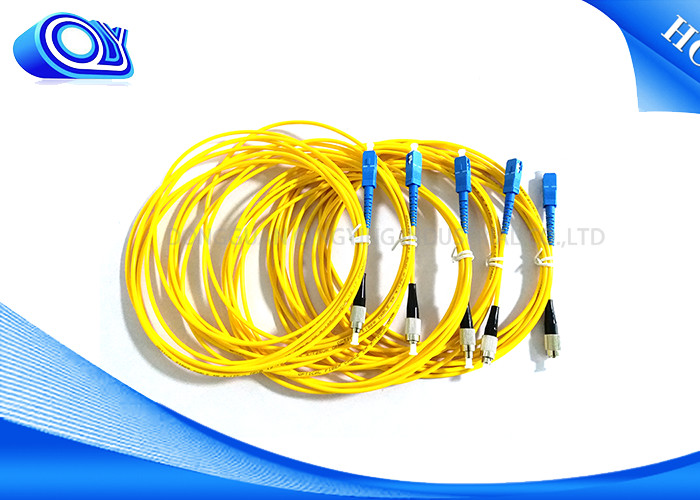

Yellow Single Mode Fiber Optic Patch Cable G652D 3.0 mm 2.0mm 0.9mm
