Simplex or Duplex 4 Cores Outdoor Fiber Optic Cable For Communication Equipment

Ask Lasest Price
Brand Name :	Qingying or QY
Model Number :	4F Outdoor Fiber Optic Cable
Certification :	ISO 9001 2015
Price :	negotiation
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	2000 Meter/Meters per Week
Delivery Time :	7-15 days after deposit

Add to Cart

Product Details
Company Profile

Simplex or Duplex 4 Cores Outdoor Fiber Optic Cable For Communication Equipment

4 cores Optical fiber outdoor duplex Base Station RRU CPRI Cable

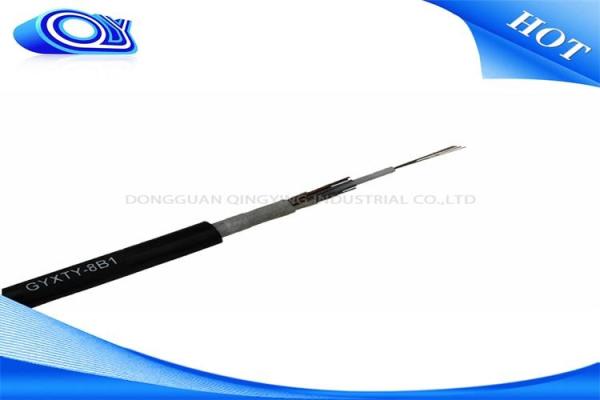

This single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blocking performance. Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.

Characteristics:

1.Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length.
2.Critical protection to fibers, based on the excellent hydrolysis resistance and strength performance of tube material and special filling compound filled in the tube.
3.Special compact structure to avoid the loose tube shrinkage.
4.Excellent crush resistance and flexibility.
5.PSP enhances the cable crush-resistance, impact-resistance and moisture-proof.
6.Two parallel steel wires ensure tensile strength. Small diameter, light weight and installation friendliness with long delivery length.
7. Excellent ultraviolet prevention with PE sheath.

Application:
A FTTA patch cord is used as: 3G 4G base station, Aerospace & Defence, Equipment diagnosis, FO sensor, FTTA ,FTTP, FTTX,WIMAX, BBU, RRU, RRH, LTE.Multimode DLC/PC DLC/PC Outdoor Optical Cable Assembly GYFJH 2A1a(LSZH) 7.0mm 2 Cores with protected branch.

Technical Data

Item	Single mode		Multi mode
Splicing Type	UPC	APC	PC
Insertion Loss	<or=0.3dB	<or=0.2dB	<or=0.3dB
Reture Loss	>or=45dB	>or=55dB	>or=35dB
Repeatability	<or=0.1dB	<or=0.1dB	<or=0.1dB
Temperature	-40/+80

Specifications & Performances

Cable Count	ITEM	CABLE OD.mm(a)	S.S.T. OD.mm(b)	T.B.O.F. OD.mm(C)
4F	4.5MM	Φ4.5±0.2	Φ2.4±0.02	Φ0.5
6F	4.5MM	Φ4.5±0.2	Φ2.6±0.03	Φ0.5
8F	5.0MM	Φ5.0±0.2	Φ2.8±0.05	Φ0.5
10F	5.0MM	Φ5.0±0.25	Φ3.0±0.05	Φ0.5
12F	5.5MM	Φ5.5±0.25	Φ3.2±0.05	Φ0.5
24F	7.0MM	Φ7.0±0.3	Φ4.3±0.05	Φ0.5
