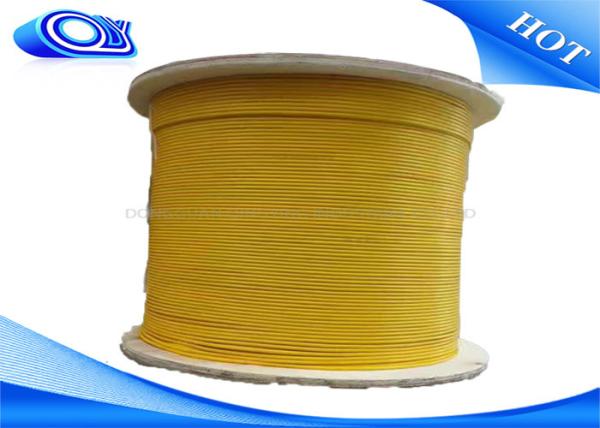

    0.9 , 2.0 , 3.0mm Indoor Fiber Optic Patch Cord , Unarmored FO Cable

    Ask Lasest Price
    Brand Name : Qingying or QY
    Model Number : 0.9,2.0,3.0mm Indoor Fiber Optic Cable Patch Cord Unarmored FO Cable
    Certification : ISO 9001 2015
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000 Meter/Meters per Week
    Delivery Time : 7-15 days after deposit
    • Product Details
    • Company Profile

    0.9 , 2.0 , 3.0mm Indoor Fiber Optic Patch Cord , Unarmored FO Cable


    0.9,2.0,3.0mm Indoor Fiber Optic Cable Patch Cord Unarmored FO Cable


    The cable contains 2 to 36 fibers which are individually buffered tight or semi-tight construction. Each fiber is individually protected in a mini cable. Aramid yarn will be applied either inside the mini cable or within the inner jacket of the cable. The color coded Mini. cable may be stranded around a central.


    Typical Usages

    3G, 4G base station
    BBU, RRU, RRH, LTE
    FTTA, FTTP, FTTX, WIMAX
    Military, Mining and shipboard
    Aerospace and Defense
    Horizontal and Vertical Cabling

    Typical Advantage

    Waterproof and corrosion resistant
    Field Installable
    Armored Steel Tube for Rodent Resistance
    With Big Capacity Data Transmission
    Low Insertion Loss and High Return Loss


    Technical Data


    Item

    Single mode

    Multi mode

    Splicing Type

    UPC

    APC

    PC

    Insertion Loss

    <or=0.3dB

    <or=0.2dB

    <or=0.3dB

    Reture Loss

    >or=45dB

    >or=55dB

    >or=35dB

    Repeatability

    <or=0.1dB

    <or=0.1dB

    <or=0.1dB

    Temperature

    -40/+80


    Specifications&Performances


    Cable
    Count

    ITEM

    CABLE
    OD.mm(a)

    S.S.T.
    OD.mm(b)

    T.B.O.F.
    OD.mm(C)

    4F

    4.5MM

    Φ4.5±0.2

    Φ2.4±0.02

    Φ0.5

    6F

    4.5MM

    Φ4.5±0.2

    Φ2.6±0.03

    Φ0.5

    8F

    5.0MM

    Φ5.0±0.2

    Φ2.8±0.05

    Φ0.5

    10F

    5.0MM

    Φ5.0±0.25

    Φ3.0±0.05

    Φ0.5

    12F

    5.5MM

    Φ5.5±0.25

    Φ3.2±0.05

    Φ0.5

    24F

    7.0MM

    Φ7.0±0.3

    Φ4.3±0.05

    Φ0.5


    Fiber Parameters


    No.

    Items

    Unit

    Specification

    G.652D

    1

    Mode Field Diameter

    1310nm

    μm

    9.2±0.4

    1550nm

    μm

    10.4±0.5

    2

    Cladding Diameter

    μm

    124.8±0.7

    3

    Cladding Non-Circularity

    %

    ≤0.7

    4

    Core-Cladding Concentricity Error

    μm

    ≤0.5

    5

    Coating Diameter

    μm

    245±5

    6

    Coating Non-Circularity

    %

    ≤6.0

    7

    Cladding-Coating Concentricity Error

    μm

    ≤12.0

    8

    Cable Cutoff Wavelength

    nm

    λcc≤1260

    9

    Attenuation (max.)

    1310nm

    dB/km

    ≤0.4

    1550nm

    dB/km

    ≤0.3

    CIV Assessment report (627K).pdf


    Welcome to check our QY identity By TUV !


    https://verified.chn.tuv.com/Report/ComplexReport.aspx?key=ac6bfb76-132b-4b2f-ac52-9ea75f884b7a
