Armored Water Proof Fiber Optic Patch Cord with Multi Ports MTP / MPO / LC / SC

Ask Lasest Price
Brand Name :	Qingying
Model Number :	Armored Waterproof Fiber Optic Patch Cord with Multi Ports (MTP/MPO/LC/SC)
Certification :	IEC 60794-2-10/11
Price :	negotiation
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	50000pcs per week

Add to Cart

Product Details
Company Profile

Armored Water Proof Fiber Optic Patch Cord with Multi Ports MTP / MPO / LC / SC

Armored Waterproof Fiber Optic Patch Cord with Multi Ports (MTP/MPO/LC/SC)

Product Description

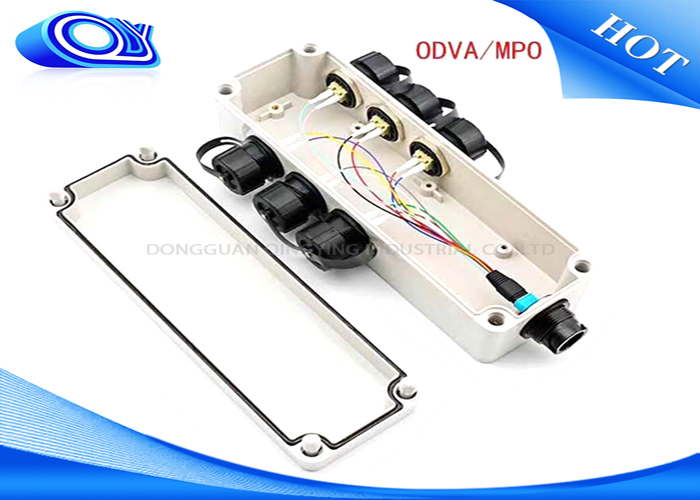

ODVA BBU/RRU Patch cables, together with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling. these patch cables are always sealed with rugged fiber terminal junction boxes that meet the requirements of more antennas on a wireless tower.

Technical specifications:

Item	Unit	LC/SC/FC/ST Fiber Patch Cord
		SM			MM
Fiber Diameter	um	9/125			65.5/125	50/125
Endface Type		PC	UPC	APC	PC	PC
Insertion Loss	db	≤0.2	≤0.15	≤0.2	≤0.1	≤0.1
Return Loss	db	≥45	≥50	≥60	-	-
Insert-pull Test	db	≤0.2	≤0.2	≤0.3	≤0.15	≤0.15
Interchangeability	db	≤0.1	≤0.1	≤0.15	≤0.1	≤0.1
Temperature Range	℃	-40~+80

ODVA BBU RRU Patch Cable is for CPRI application,that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivities.

With the development of distributed antenna syatems(DAS), ODVA connectors has become a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.

Features

1. Standad LC Duplex connector, can be connected with normal LC Adapters
2. Light weight,waterproof, dustproof, moistureproof , Metal hard housing.
3. Wall seal design,easy operation, strong and durable.

4. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.

Application

Optical Networks
Testing / Measurement Instruments
Fiber To the Home
CATV System
Telecommunications
